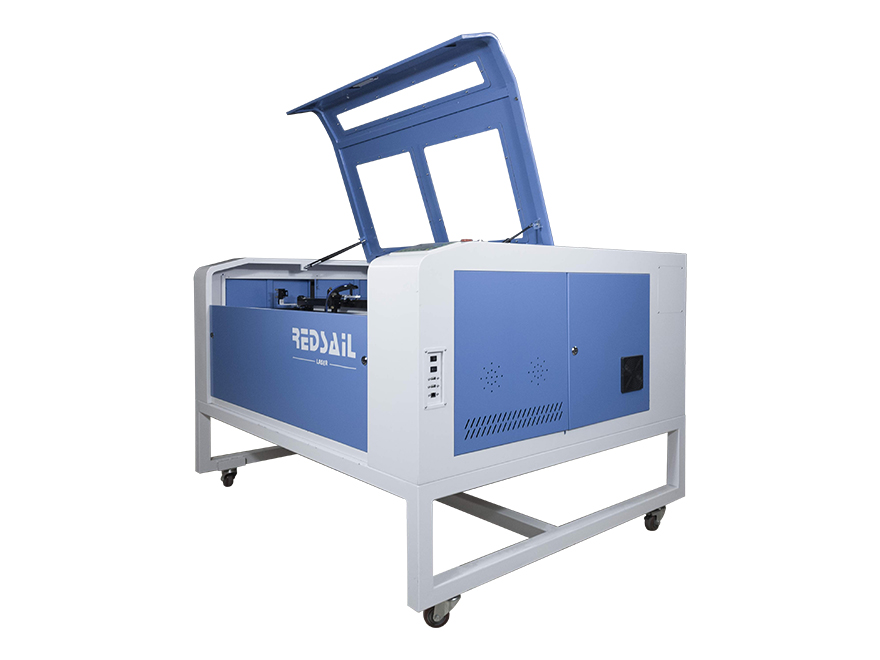

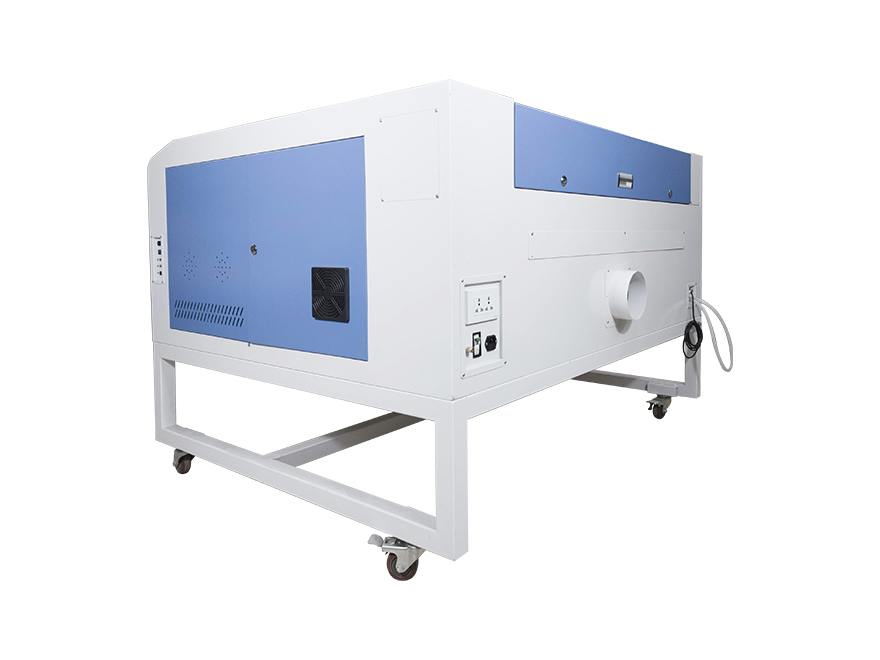

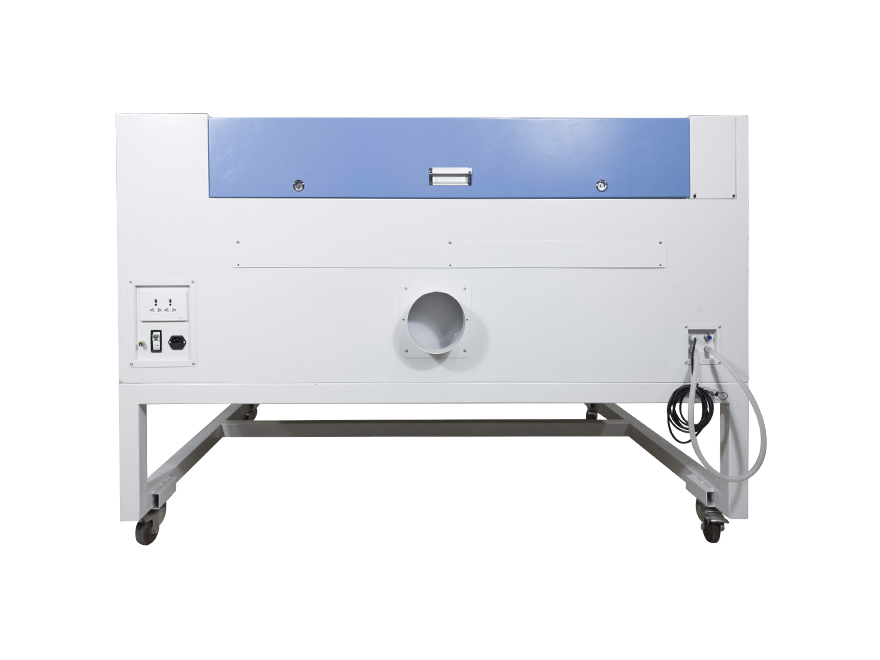

REDSAIL X1080D laser engraving and cutting machine product multi-angle all-round appearance display picture
Clover Series Laser Engraver and Cutter X1080D
IMGES
VIDEOS
Redsail Laser X1080D laser engraving machine appearance display and laser cutting and engraving function demonstration video
SPECIFICATIONS
Specifications and parameters of X1080D laser engraving and cutting machine
| Model | X1080D | |
| Laser tube type | Water CooIing Co2 Glass sealed | |
| Control system | DSP | |
| Controller | Ruida (RDWorks), TopWisdom(AutoLaser) | |
| Drive type | Micro Stepping Motor | |
| Laser Power | 50W/60W/80W/100W | |
| Working Size (mm) | 1000 x 800 | |
| Red Dot Pointer | Yes | |
| Location precision | <0.01mm | |
| Max speed | 1000 mm/s | |
| Image form | Plt, Dxf, Bmp, Ai, Dst | |
| Resolution | 2500 DPI | |
| Repeatability | 0.01 mm | |
| PC Interface | USB3.0/USB Disk/Network | |
| Motorized Up and Down table | 200mm | |
| Machine dimensions (mm) | 1600*1300*1074 | |
| N.W. | 180KGS | |
| G.W. | 220KGS | |
| Optional |
Upgrade Water Chiller(CW-3000/CW-5000/CW-5200) Laser Beam Combiner Rotary Attachment |
|
APPLICATIONS
REDSAIL Elite Laser Cutting Machines are for the different kinds of application, such as Advertising industry, Office Industry, Packaging Industry, Gift Industry, Decoration Industry, Printing Industry and so on.
Redsail Clover Series CO2 laser cutting machine is also one of the economical laser engraver. Providing a workspace of 40″ * 32“, it is engineered to handle high-demand operations. This model of Redsail CO2 laser engraving machine is suitable for customers that are on budget, and with a excellent end results of the cut materials.
Consider if you have a wonderful high power laser cutting machine that can assist you in your daily operations. Increasing your efficiency of work, enhancing your working experience, and resulting in better productivity earning higher profits. Isn”t it a good investment~
Our flatbed CO2 laser cutting machines are designed with large platforms, high speed, precision, and automation. It is installed with industry leading mechanical system, with high speed up to 1000mm/s. Redsail provides 80W/100W/130W/150W/180W, for you to choose the one that is best suitable for your business.
Laser Cutter & Engraver For Wood
Laser cutting engraving machines for MDF, plywood, alder, cherry and other wood species.
Laser Cutter & Engraver For Leather
Laser engraving and cutting machines for fine engraving and precision cutting on natural leather, artificial leather.
Laser Cutter & Engraver For Acrylic
The CO2 laser engraving produces a matte surface for impressive laser engraving results.
Laser Cutter & Engraver For Paper
You can cut, engrave, score or punch holes in paper, cardboard or chipboard with a laser cutting and engraving machine.
Laser Cutter & Engraver For Glass
It can engrave letters, icons and photos on glass, mainly for engraving on water glasses and bottles.
FEATURES
More features of our laser engravers and cutters.
GET FREE DEMO VIDEOS!
We can make a free LIVE demonstration online!
2-Way Material Thru-Pass-Thru Points for Greater Flexibility
REDSAIL has dramatically improved our laser cutting machinery, to be widely applied in different applications. With the feature of 2-way pass-through points, you can perform laser cutting for huge-sized materials. Extending outside of the working area for both front and back sides.
REDSAIL Elite-SERIES 100W CO2 Laser Machine
Redsail Professional Elite Series offers a variety of Watts ranging from 80W to 180W, if you are not sure which watts are best for you feel free to consult our customer service experts.
All laser tubes for laser cutting machines have a lifetime, our laser tubes can perform up to 10,000 hours. This is not just a figure only, we had done experiments, and collect data accordingly.
Starting from the assembling process, we ensure the quality beam profile and maximum power. The Professional Elite Series is designed and innovated to handle high-demand production and long days operations. As well as ensuring the consistency of the same products between different batches.
Constantly upgrading and advancing the beam power density generates a powerful cutting and engraving revolution. Furthermore, all REDSAIL laser tubes have 18 months of warranty and for our laser machines, we provide a lifetime free warranty.
Laser Software
RUIDA Digital Control: The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible. RDWorks v8 which can also be compatible with Lightburn software– all-in-one layout, editing, and control software package that is extremely intuitive and feature rich.
Honeycomb & Knife Blade Platforms Offers Flexible Material
Both the Knife Blade and Honeycomb platforms are included for the flexibility, whether it is during cutting or engraving material.
REDSAIL Professional Elite Laser Details:
• VENTILATION: Exhausted fan expels smoke and fumes to create a safer workspace and extend the service life of your machine.
• CROSS RED DOT GUIDANCE: Improved accuracy cross red dot pointer mounted on the laser head quickly indicates engraving points, marks the machine’s path, and identifies the positioning size, allowing an effortless project setup process.
• AIR ASSIST: During the laser cutting process, air ventilation is very critical to prevent material from deformation. Furthermore, it can prevent dust, debris, combustible gas from the laser head. Preventing laser head focal lens from contamination, keeping your worktable cleaner and safer engravings more precise.
• LINEAR RAIL GUIDING SYSTEM: Equipped with the better transmitting system – new available drive with the highest precision in same class stepper motor drive system and PMI linear rail guideway for higher precision and longer service life.
• WATER PROTECTION SYSTEM: Pre-installed signal plug and the included industrial water chiller allow a fast and easy setup, protecting the laser tube and maximining the working life.
Push Button Z-Axis
REDSAIL Professional Elite Laser Cutter’s electrical accelerating Z Table can accommodate 8″ to 10″. As there is a higher cabinet to provide you with additional workspace, by lowering the platform.
Stepper Drive System
New available Drive highest precision in same class stepper motor drive system.
New & Easy Laser/PC Connectivity Via. WI-FI, Ethernet, Or USB
Various laser to PC connectivity choices – USB, Ethernet, or WiFI (router included).
New 256MB USB Flash Drive For Alternative Job Storage
As an alternative to the onboard memory available on the controller card you can also save or run jobs from the 256 MB USB flash drive.
Optional Auto-Focus
More earlier to adjust the focal length, you can get all ready for working just one second!
PC Compatibility Windows, Mac OS, Or Linux
Just Using your current computer! Windows 32 or 64 bit is ok for any software, Windows, Mac OS, and even Linux operating systems 32 or 64 bit is ok if you use LightBurn.
